BLDC technology
trend of energy saving, synonym of high efficiency


Windows are greater in quantity and size in modern buildings than before to allow sunlight brings vitality and energy. Therefore curtains/blinds perform multiple roles of shading, privacy and decoration. ZENNO motorized blinds system offers best solution to ensure a safe environment without tangle of cords and convenient operation by push a button simply.

As a pioneer, ZENNO RD team devoted in BLDC technology conducting to motorized blinds far earlier than other business partners. ZENNO motorized blinds system grants advantages of silent, longer operation time, larger measurement, precision positioning and control. Meanwhile, green power is taking into consideration as an eco friendly solution. BLDC technology features high efficiency and good torque characteristics, which performs superiorly as driven by low-voltage power source, such like solar panel. ZENNO BLDC system benefits to build a cordless & wireless automated shading solution no matter in residential or public spaces by providing full series of tubular motor and component. ODM or OEM are welcome as well as customize requirements.

Tubular motor features

Tubular motor features
  1. BLDC actuator: high efficiency power source, MCU structure, longer lifetime than brushed DC motor, inverter duty control
  2. Ready for HA system (dry contact / RS485 / UART)
  3. Low operation temperature, longer operation time
  4. Quiet operation
  5. Higher torque
  6. Electronic limit setting

Motor specifications

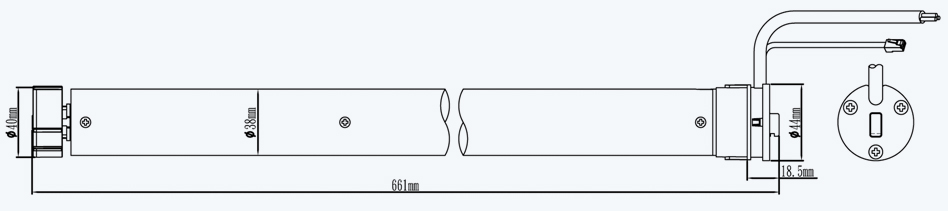

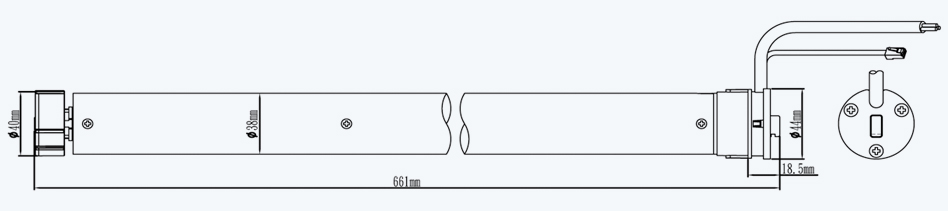

Size (mm) ∮38*661
Torque (Nm) 4/5/6
Speed (rpm) 34/27/22
Running time 1 hour
Rated voltage DC 27V
Power input 100~230V AC 50-60Hz
Rated output 29W
Amps 1A
Limit setting electronic
Preferred positions 2
IP degree IP44
Noise level < 40dB
Lifting capacity Max.26 kgs (ATD46 tube@6 Nm)
Control RF / dry contact
Size (mm) ∮38*661
Torque (Nm) 4/5/6
Speed (rpm) 34/27/22
Running time 1 hour
Rated voltage DC 27V
Power input 100~230V AC 50-60Hz
Rated output 29W
Amps 1A
Limit setting electronic
Preferred positions 2
IP degree IP44
Noise level < 40dB
Lifting capacity Max.26 kgs (ATD46 tube@6 Nm)
Control RF / RS485

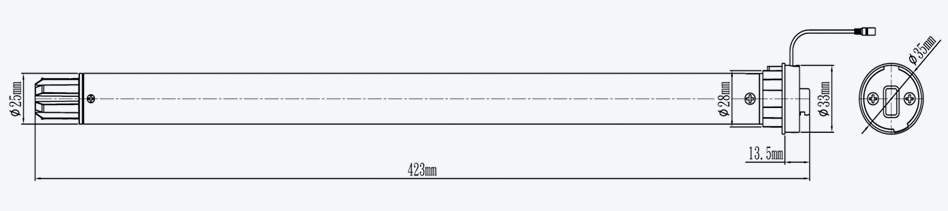

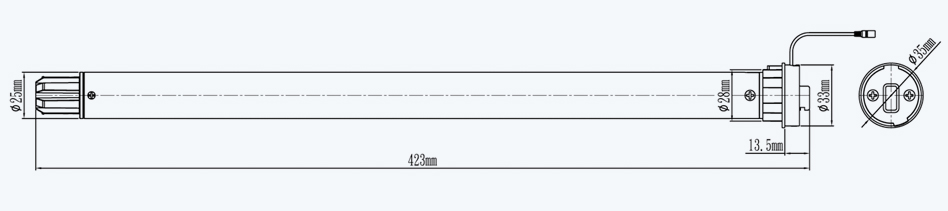

Size (mm) ∮25*423
Torque (Nm) 2
Speed (rpm) 35
Running time 10 mins
Power input DC 12V
Rated output 24W
Amps 1.8A
Limit setting electronic
Preferred positions 2
IP degree IP44
Noise level < 40dB
External battery 14.8V lithium battery(2600/5200mAh)
Solar panel option
Adapter 19V / 2.21A
Lifting capacity 9 kgs (OD44 tube)
Control RF / dry contact

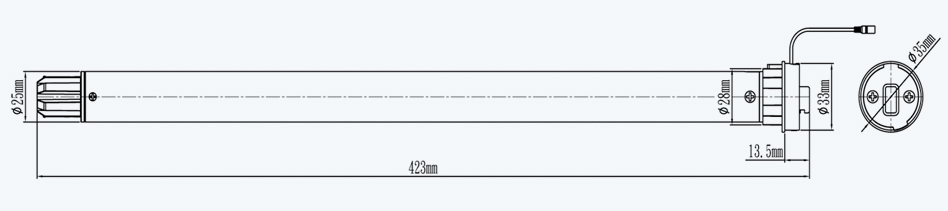

Size (mm) ∮25*423
Torque (Nm) 2
Speed (rpm) 35
Running time 10 mins
Power input DC 12V
Rated output 24W
Amps 1.8A
Limit setting electronic
Preferred positions 2
IP degree IP44
Noise level < 40dB
External battery 14.8V lithium battery(2600/5200mAh)
Solar panel option
Adapter 19V / 2.21A
Lifting capacity 9 kgs (OD44 tube)
Control RF/RS485
Size (mm) ∮25*423
Torque (Nm) 2
Speed (rpm) 35
Running time 10 mins
Power input DC 12V
Rated output 24W
Amps 1.8A
Limit setting electronic
Preferred positions 2
IP degree IP44
Noise level < 40dB
External battery 14.8V lithium battery(2600/5200mAh)
Solar panel option
Adapter 19V / 2.21A
Lifting capacity 9 kgs (OD44 tube)
Control RF / UART module

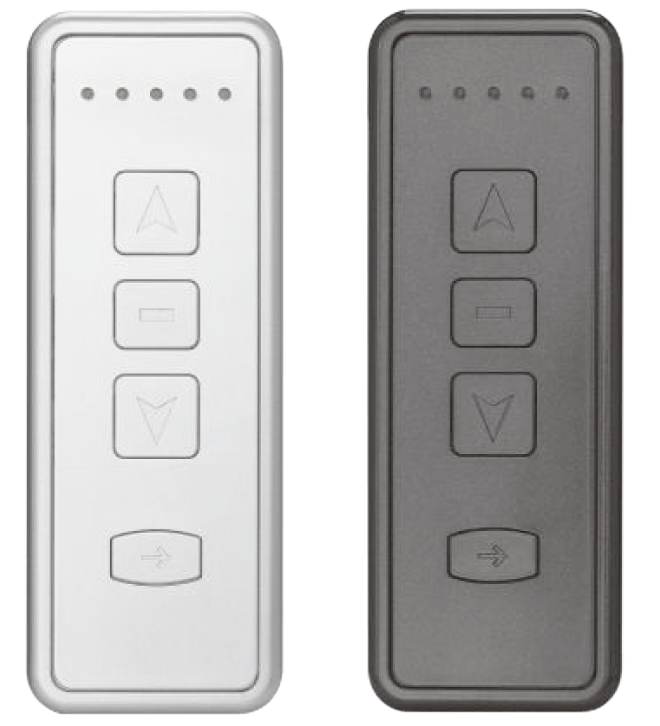

RF remote control

Channel 5
Control single / group
Frequency 433.92 / 315 MHz
Rated amps 10 uA
Dimension 125.5*45.5*14
Max. codes 16 million
Battery CR2032
Functions up/stop/down/shift
Colors white / black

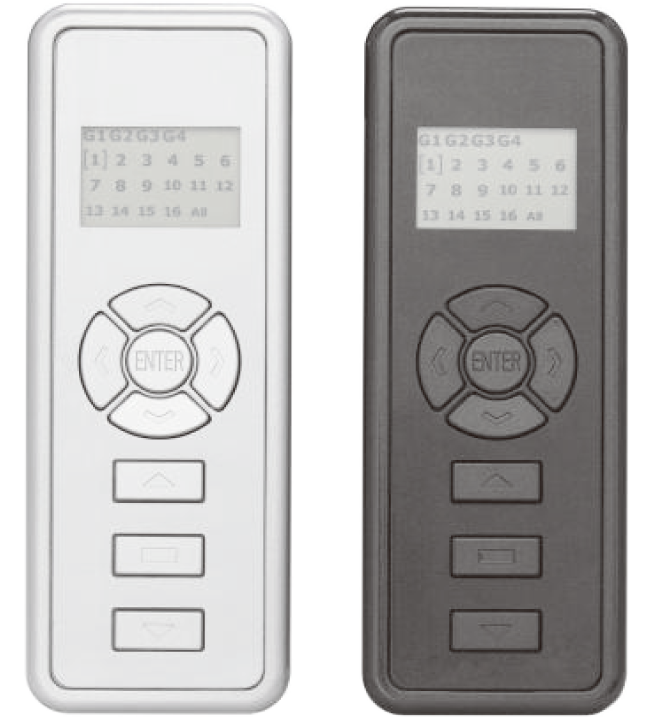

Channel 16
Control single / group / all
Frequency 433.92 / 315 MHz
Rated amps 10 uA
Dimension 125.5*45.5*14
Max. codes 16 million
Battery CR2032
Functions up/stop/down/shift
Colors white / black

Applications

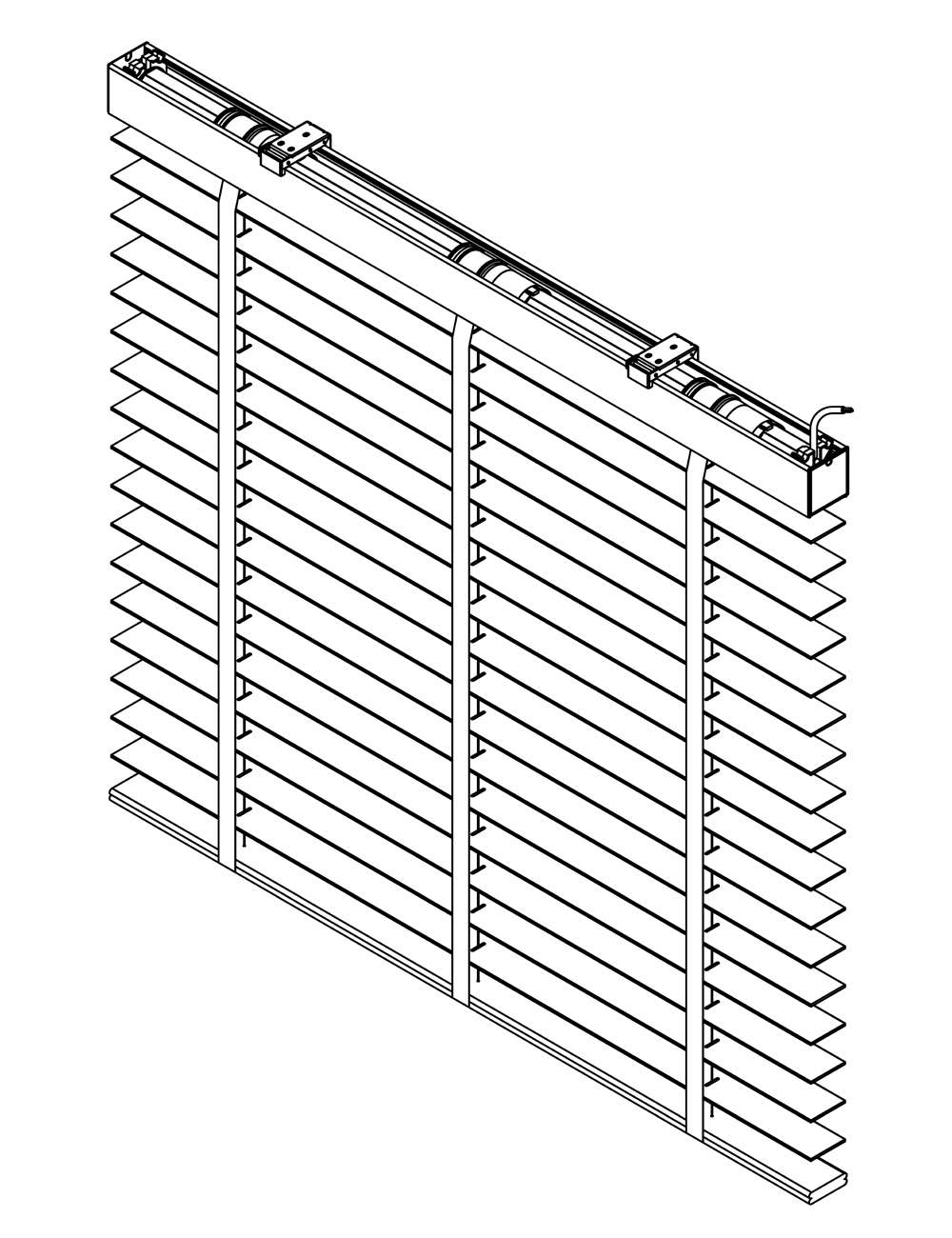

venetian blinds

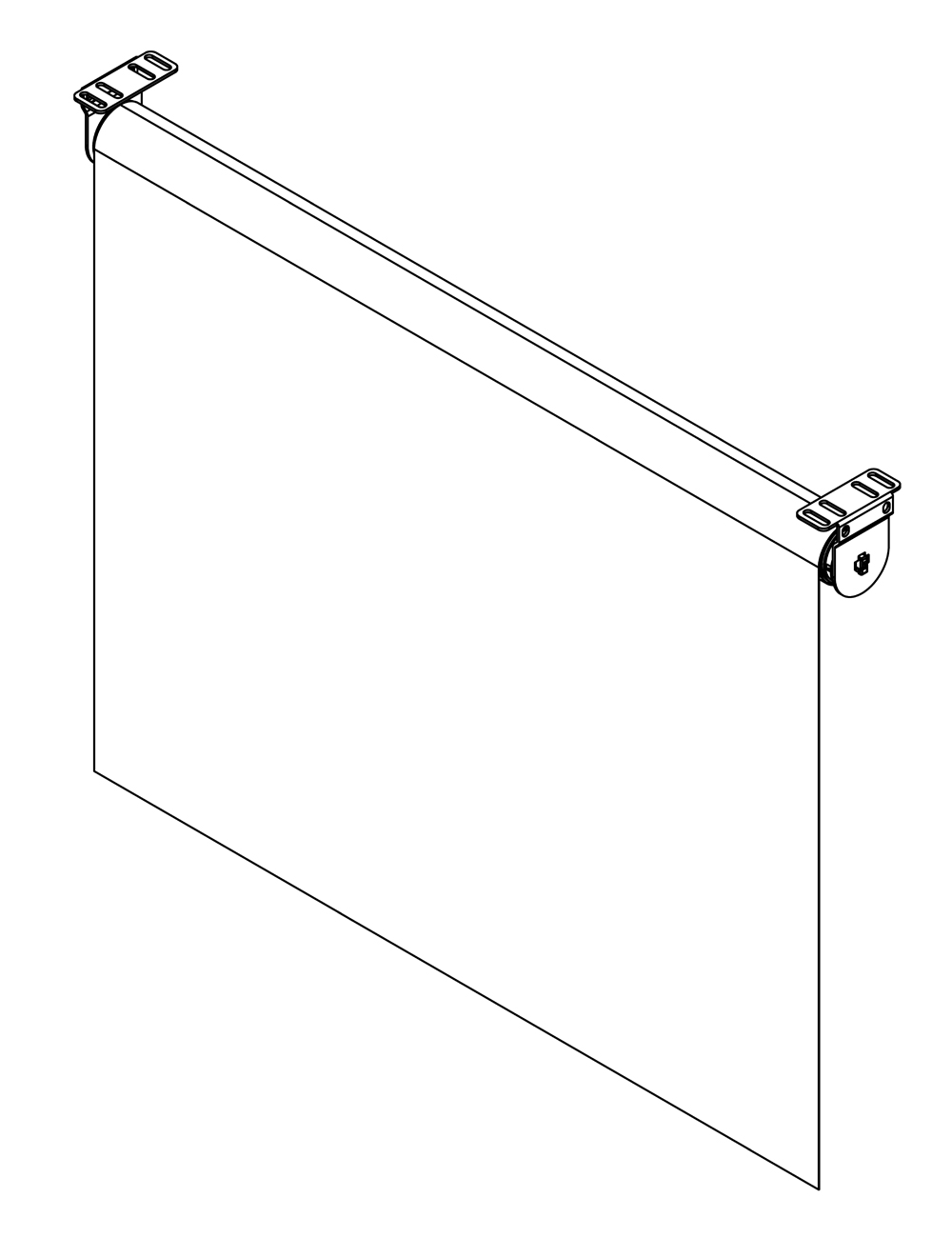

roller blinds

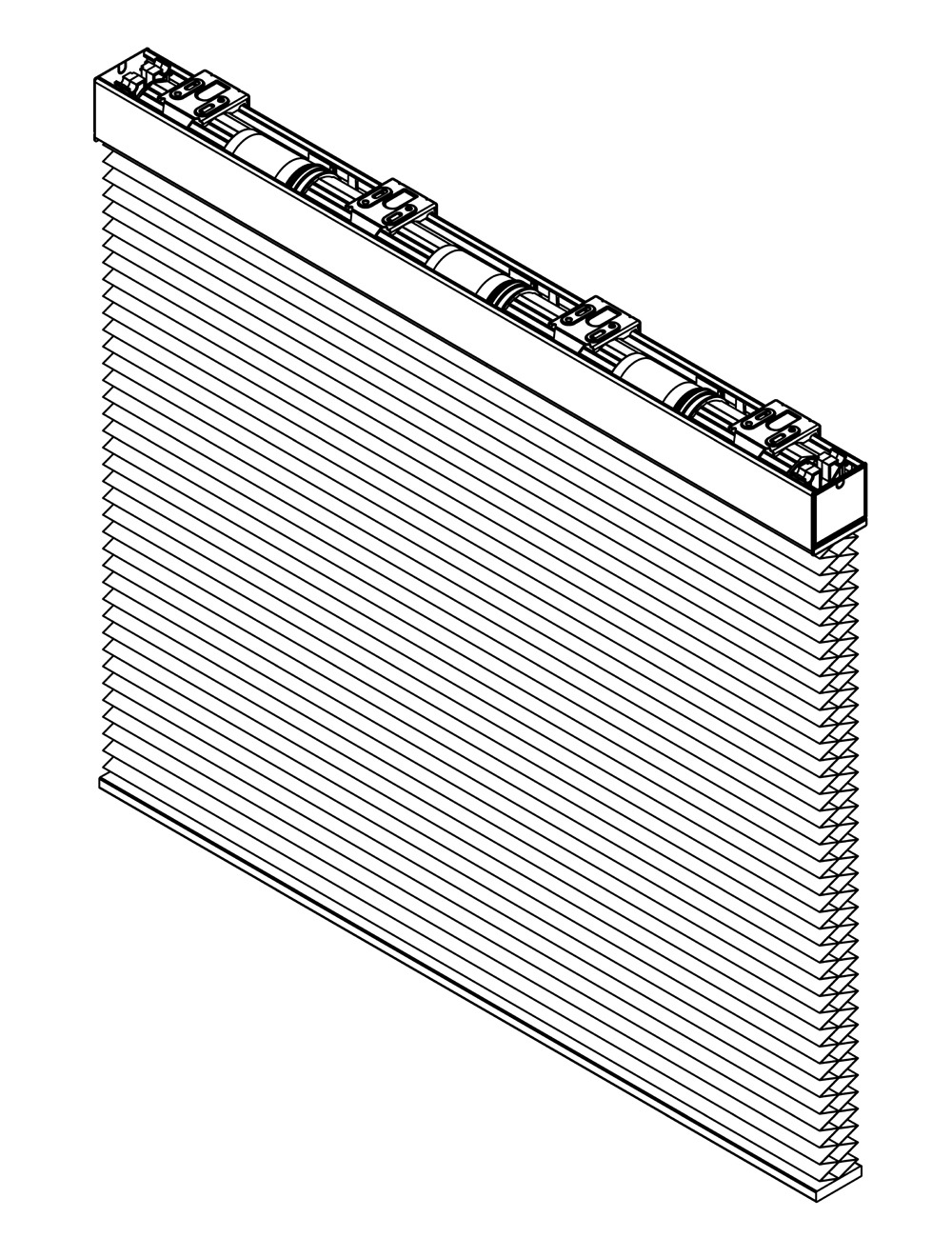

honeycomb blinds

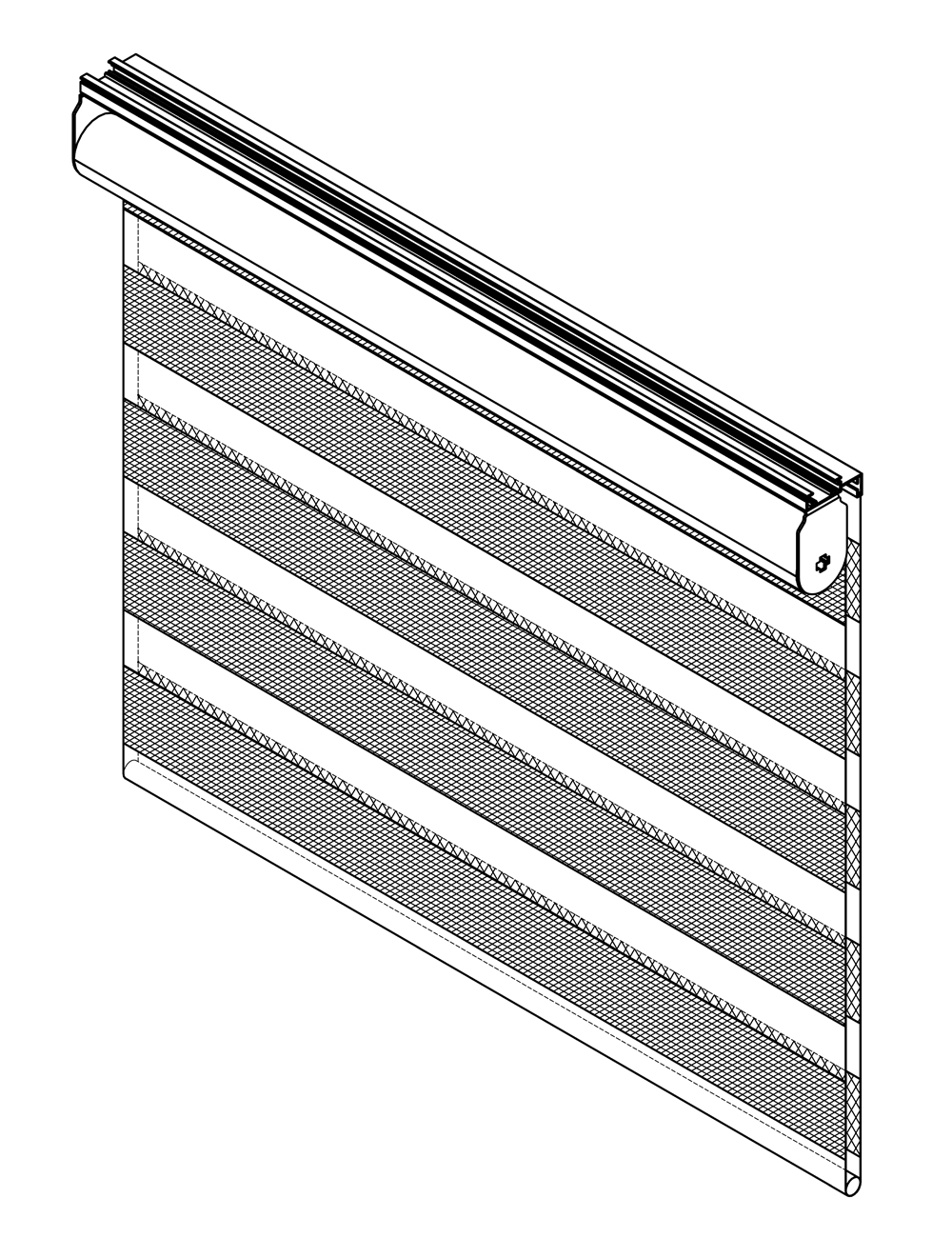

sheer blinds

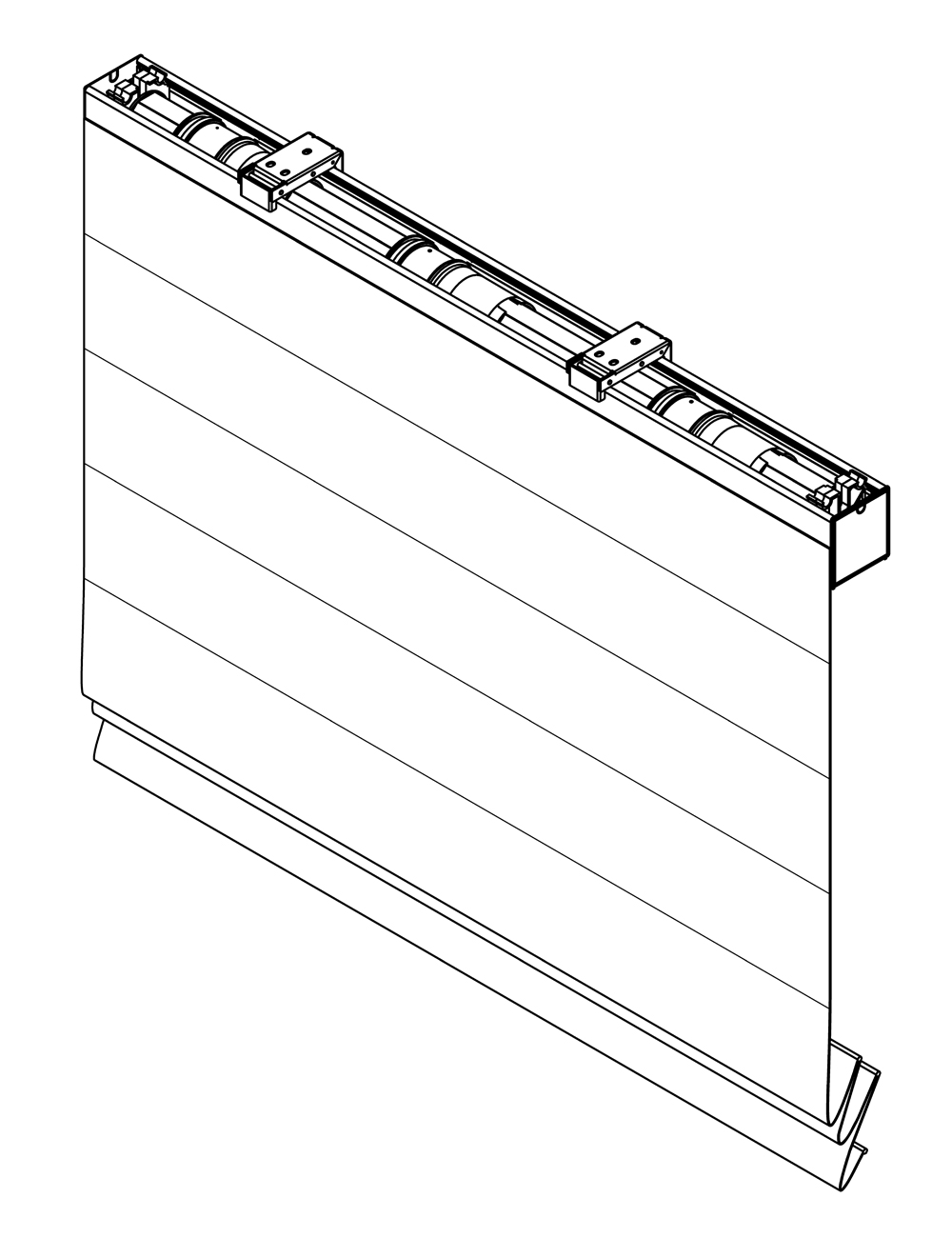

roman shades
